日本NDV球阀F107NB-NTF-050-J10KRF类型主要尺寸

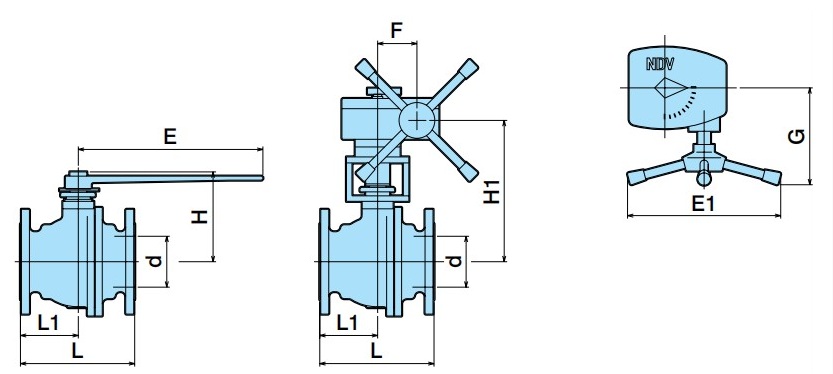

日本NDV手动球阀杠杆式和齿轮式两种类型
単位： mm
|
标称直径
DN |
| 杠杆操作 | 齿轮操作
| 重量(约Kg) |
| d | L | L1 | H | E | H1 | G | F | E1 | 杠杆操作 | 齿轮操作 |
| 10K CL150 | 20K CL300 | 10K CL150 | 20K CL300 |
| 10K CL150 | 20K CL300 | 10K CL150 | 20K CL300 | 10K CL150 | 20K CL300 | 10K CL300 | 20K CL300 | 10K CL150 | 20K CL300 | 10K CL150 | 20K CL300 | 10K CL150 | 20K CL300 |
| 15 | 13 | 108 | 140 | 45 | 63 | 80 | 130 | 130 |
|
|
|
|
|
|
| 1.9 |
|
|
|
| 20 | 19 | 117 | 152 | 50 | 70 | 85 |
|
|
|
|
|
|
| 2.5 | 2.3 |
|
|
| 25 | 25 | 127 | 165 | 51 | 71 | 100 | 160 | 160 |
|
|
|
|
|
|
| 4 | 3 |
|
|
| 40 | 38 | 165 | 190 | 70.5 | 76.5 | 115 | 230 | 230 |
|
|
|
|
|
|
| 6.5 | 4.7 |
|
|
| 50 | 54 | 178 | 216 | 80.5 | 86 | 120 |
|
|
|
|
|
|
| 8.5 | 7.3 |
|
|
| 65 | 64 | 190 | 241 | 87 | 103 | 135 | 350 | 350 |
|
|
|
|
|
|
| 13.5 | 17 |
|
|
| 80 | 76 | 203 | 283 | 97 | 124 | 145 |
|
|
|
|
|
|
| 16.5 | 23 |
|
|
| 100 | 102 | 229 | 305 | 116 | 135 | 180 | 450 | 450 | 280 | 285 | 165 | 190 | 62.5 | 240 | 300 | 27 | 38.5 | 41 | 57.5 |
| 125 | 127 | 356 | 381 | 148 | 158 | 260 | 650 | 650 | 342 | 342 | 190 | 230 | 77 | 300 | 460 | 46 | 59 | 73 | 92 |
| 150 | 152 | 394 | 403 | 173 | 178 | 280 | 362 | 362 | 61 | 75 | 88 | 108 |
| 200 | 203 | 457 | 502 | 207 | 135 | 350 | 800 | 1100 | 425 | 446 | 230 | 260 | 90.5 | 460 | 98 | 123 | 135 | 174 |
注：日本NDV球阀F107NB-NTF-050-J10KRF类型主要尺寸更加详细型号对应图纸请联系我们中国代理销售部。
